Dealer Equipment Inventory Stock

Detailed description of API:

Interface currently available for DMS development in:

• NAFTA

Version & Updates

Version	Revision Date	Revision History
1.0	19th Dec 2025	New Release

Overview

The Dealer Equipment Inventory Stock API supports near-real-time ingestion of dealer equipment inventory data into the Salesforce platform via DEP. The current integration scope is limited to the NAFTA region.

Pre-requisites

• Dealer must use their Dealer Portal credentials to authorize API call
• Each DMS provider will have a Subscription key assigned by CNHi team, please reach out to dlnadmssupport@cnh.com for assistance
• Each Subscription key is unique to DMS and the environment it belongs to

Authentication

• DMS will pass Basic auth in HTTP header with username/password
• The UserID and Password will be set up in the Dealer Portal by the Dealer uniquely for DMS access to interfaces
• DEP API will require subscription_key in HTTP header to identify client

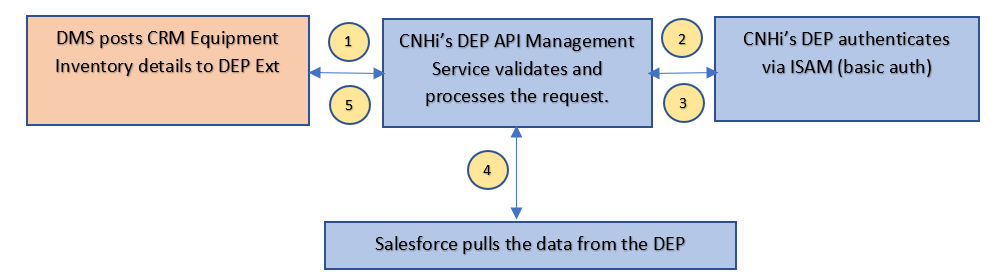

High-level Integration

• DMS pushes request payload to DEP-Ext team
• Data Sharing Agreement (DSA check) validation will be implemented by DEP-Ext team before accepting data sent by DMS/Dealer
• DEP-Ext will receive the payload and will perform data validations requested by Salesforce team
• DEP-Ext team will respond with return response status code & message to DMS

API Format

• REST

The DEP takes care of the format transformations (as needed) to process the request and provide a response to the DMS system.

Connection Details

CNHi provides two environments:

• CERT / UAT
• Production

Environment	URL	API	Request Type
CERT/UAT	https://{base_url}/external/services/crm/equipment/inventory	REST	POST
Production	https://{base_url}/external/services/crm/equipment/inventory	REST	POST

Request Description

Name	Data Type	Description / Remarks	Is Mandatory?	Sample Data
Source_Created_Date_time	String	Time when change occurred in DMS. It will be in ISO 8601 UTC format like YYYY-MM-DDThh:mm:ssZ	Yes	2022-08-06T14:36:00+02:00
SAP_OG_Dealer_Code	String	CNH SAP Ownership Group Number	Yes	102011
Brand_Code	String	Brand Code	Yes	CE
Model_Code	String	Model Code	Yes	SR210B
Stock_Number	String	Stock Number	Yes	K014937
Serial_Number	String	Vehicle Serial Number	Yes
Vehicle_Number	String	Vehicle Number Number	No	12323
Parent_Stock_Number	String	Parent Stock Number	No	K014937
Status	String (List)	Status	Yes	Ordered, Inventory, Robbed, Demo, Show, Rental, Pre-Sold, Sold, Invoiced, Transferred, Consignment
Condition	String	Condition	Yes	New, Used
Short_Description	String	Short Description	No	SKID STEER LOADER
Dealer_Location_Code	String	Dealer Location Code	No	6
Model_Year	String (4)	Model Year	No	2023 (YYYY)
Product_Level_1	String	Product_Level_1	No	100
Product_Level_2	String	Product_Level_2	No	101
Original_Cost	Decimal	Original Cost	No	49182.16
Adjusted_Cost	Decimal	Adjusted Cost	No	-1429.02
Total_Cost	Decimal	Total Cost	No	47753.14
Advertised_Retail_Price	Decimal	Advertised Retail Price	No	573047.00
Sold_Retail_Price	Decimal	Sold Retail Price	No	573047.00
Currency_Code	String	Currency Code	Yes	USD / CAD
Engine_Hours	Decimal	Engine Hours	No	2491
Separator_Hours	Decimal	Separator Hours	No	2491
Bales	Decimal	Bales	No	8.0
Acres	Decimal	Acres	No	14.00
Specifications	Array	The structure of the 'Specifications' attribute may contain sub-attributes like Code, Description, Price, etc which are yet To Be Decided (TBD)	No	See Sample Payload

Sample Request Payload

{
  "Source_Created_Date_time": "2022-08-06T14:36:00+02:00",
  "SAP_OG_Dealer_Code": "102011",
  "Brand_Code": "CE",
  "Model_Code": "SR210B",
  "Stock_Number": "K014937",
  "Serial_Number": "SERXXXXXX",
  "Vehicle_Number": "12323",
  "Parent_Stock_Number": "K014937",
  "Status": "Inventory",
  "Condition": "New",
  "Short_Description": "SKID STEER LOADER",
  "Dealer_Location_Code": "6",
  "Model_Year": "2023",
  "Product_Level_1": "100",
  "Product_Level_2": "101",
  "Original_Cost": 49182.16,
  "Adjusted_Cost": -1429.02,
  "Total_Cost": 47753.14,
  "Advertised_Retail_Price": 573047.00,
  "Sold_Retail_Price": 573047.00,
  "Currency_Code": "USD",
  "Engine_Hours": 2491,
  "Separator_Hours": 2491,
  "Bales": 8.0,
  "Acres": 14.00,
  "Specifications": [
    {
      "Attribute1": "",
      "Attribute2": "",
      "AttributeN": ""
    }
  ]
}

Note: The API request payload should be less than 900 KB in size

Response Codes

Status Code	Message
200	Equipment inventory payload uploaded successfully
400	- Not null validation failed for the following attributes: Source_Created_Date_time, SAP_OG_Dealer_Code, Brand_Code, Model_Code, Stock_Number, Serial_Number, Status_Code, Condition, and Currency_Code - Data validation (list check) failed for the following attributes: Status_code, Condition, and Currency_Code
401	Access denied due to invalid credentials or missing/invalid subscription key
404	Resource not found
429	Rate limit is exceeded - You can make up to 500 requests per minute. Please wait before retrying.
500	Internal Server Error - An unexpected issue occurred while processing the request, possibly due to backend services, dependencies, or infrastructure.
504	Gateway Time-out
