Work Order

Detailed description of API:

Version & Updates​

Details
VersionRevision DateRevision History
1.0December 2022New Release
1.1February 2023Updated the Work Order Attributes
1.2February 2023Updated the Work Order Attributes with all required fields
1.3February 2023Updated the Work Order Attributes with the inspection information
1.4February 2023Added Work Order Historical Upload Section
1.5February 2023Updated workorder attribute hierarchy
1.604 April 2023Uploaded prod samples, updated authentication and pre-requites
1.731st Aug 2023Updated the Prod URLs, Pictorial representation of the data flow, Pre-requisites to access the API, Response Codes, API, Request Types. Moved Authentication Section to API and Connection Details, Sample Request and Response files to Sample Request and Responses section. Renamed Connection Details to API and Connection Details. Corrected Navigation Headings, WO Sample Request XML file.
1.813th Oct 2023Added CNHi WO Validation rules
1.913th Mar 2025Updated attributes file, JSON payload
1.1019th Aug 2025Removed existing filter from Work Order attributes sheet
1.1123rd Sep 2025Enhanced Work Order attributes sheet in the new format (No Data type or Attribute change, provided more details for better readability)
1.1222nd Dec 2025Updated the Work Order historical upload section with additional details, including STFP and Azure Event Hub approaches
1.1321st Jan 2026Updated both the methods of Historical data upload with more details
VersionRevision DateRevision History
1.144th Feb 2026Added LATAM endpoint details, Updated sample C# code in Historical data upload section to set EventType while sending the Work Order data

Overview​

Workorder API is structured to capture the information about the critical attributes used in the work order at the time of creation in any DMS systems. Whereas this API, along with the vehicle parameters details collected from CNHI, will also include the additional details that are captured exclusively by the DMS in the Workorder like the details of the repair, technician, payment, and customer etc.

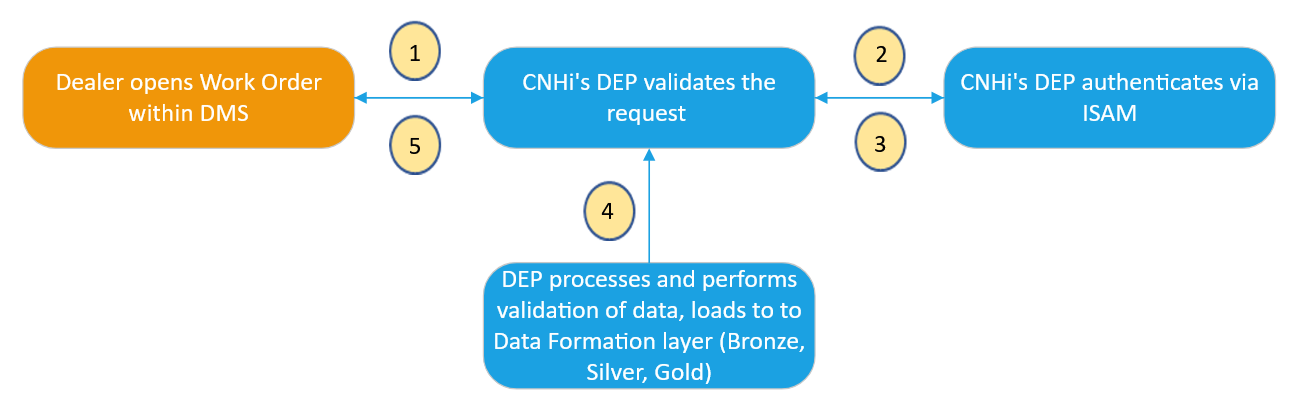

Please refer to diagram below for information on the data flow of this interface.


Pre-requisites

  • Dealer must use their Dealer Portal credentials to authorize API call.
  • Each DMS provider will have a subscription_key assigned by CNHi team, please reach out to dlnadmssupport@cnh.com for assistance
  • Each Subscription key is unique to DMS and the environment it belongs to
  • Based on the payload (XML/JSON), user to pass the content-type in the header
  • User within Ownership Group has accepted CNH's Data Acknowledgement (if located in NAFTA)

Authentication

  • DMS will pass Basic auth in HTTP header with username/password
  • Each DMS provider will have a subscription_key assigned by CNHi team, please reach out to dlnadmssupport@cnh.com for assistance
  • The UserID and Password will be set up in the Dealer Portal by the Dealer uniquely for DMS access to interfaces
  • DEP API will require subscription_key in HTTP header to identify client

Work Order Validation​

CNHi has 3 different pieces of validation to ensure DMS are configured to send corresponding details about the Dealer performing the repair.

  1. UserID Matching within Work Order

    a. The UserID that is used to authorize with & the UserID provided in the header of the Work Order payload, have to match

    b. CNHi will not accept Work Orders that do not have corresponding UserIDs

  2. DocumentID (i.e. Work Order ID) must have a unique value

    a. This is a mandatory field, every work order needs to have a unique DocumentID because it is a primary key of Work Order

    b. We are expecting this to be an alphanumeric value, i.e. something like 115070287

  3. UserID & Corresponding Ownership Group Validation

    a. Dealer Code's Ownership Group must match with the associated submitted UserID’s Ownership Group in the header of the Work Order payload

    b. The provided Dealer Code (SAP Primary) and submitting UserID should belong to the same Ownership Group (OG)

API Format​

  • REST

The DEP takes care of the format transformations (as needed) to process the request and provide a response to the DMS system. New DMSs who are building this interface are recommended to the use the REST API for greater simplicity.

Connection Details​

Endpoints​

EnvironmentURLAPIRequest Type
CERT/UAThttps://{base_url}/latamexternal/services/v1/workorderRESTPOST
Productionhttps://{base_url}/latamexternal/services/v1/workorderRESTPOST

Request Body​

Although the Work Order API supports both JSON and XML, CNHi preferred format is JSON.

Sample JSON Payload​

Download Workorder JSON Payload / Body

Sample XML Payload​

Download Workorder XML Payload / Body

Work/Repair Order Attributes​

Please refer to Tab 1 "Work Order Attributes List" to get all the work order attribute information. Tab 2, 3 and 4 provides attributes structure in tree format for better readability.

Download Work Order Attributes

Response Codes​

Status CodeMessage
200Work Order uploaded successfully!
400Please Provide DMS Name and Dealer Code
500Internal Server Error
401Access denied due to invalid UserID or Password.
403Forbidden

Work Order Historical Upload​

Note
  • Historical data should NOT be sent via Work Order API.
  • Only Closed Work Orders are expected to be sent to CNH as part of Historical Data.
  • Work Order Historical upload is only applicable for NAFTA region.

DMS/Dealer should send historical Workorder data to CNH DEP using any of the two following methods.

Method 1: 17 Files in CSV format

a. DMS/Dealer needs to send Work Order data segregated in the 17 CSV files.
 i. Structure and format of 17 CSV files.
 ii. 17 CSV files Sample Data.

b. To efficiently manage workorder data processing, DMS can segment work order records into periodic batches; such as quarterly (3 months) or semiannually (6 months) intervals and same work order data related information need to be available in 17 CSV files. Please ensure that no data is lost across any of the 17 files.

c. Attributes highlighted in the Green color font in each tab of "17 CSV" files are composite primary keys for the respective file/table. Those attributes are mandatory and should not be NULL.

d. Please follow the file nomenclature as shown in the information box below

File Nomenclature

WO_<DMSName><DealerName><primarySAPNumber><DataFromDate>to<DataToDate><File Transfer DateTime>.zip

Note: The <primarySAPNumber> field is optional if the DMS/Dealer is sending the data at the OG level by combining all locations data in a single file.

e. For a detailed breakdown of each data field and its attributes, please refer to the attributes sheet.

f. Please contact CNH support team by providing DMS Name, Dealer name and SAP Ownershipgroup number to setup SFTP.

Method 2: JSON Method

a. DMS can send the historical work orders in JSON format through azure EventHub.

b. Payload structure remains same as the API request payload structure. Sample JSON Workorder Payload

c. DMS has to set the partition key for each Event/Work Order Payload. Partition key should be "<dealercode><workordernumber>".
Please refer the sample C# code below for your reference. However DMS can choose the any other langauge as per their convenience.

Sample C# code to send Work Orders to Event Hub
  var producerClient = new EventHubProducerClient("CONNECTION_STRING", "EVENTHUB_NAME");

  var batchOptions = new CreateBatchOptions
  {
      PartitionKey = "<dealercode><workordernumber>"
  };

  using EventDataBatch eventBatch = await producerClient.CreateBatchAsync(batchOptions);
  var payloadjson = "Work Order Json";
  var data = new EventData(Encoding.UTF8.GetBytes(payloadjson));
  data.Properties.Add("EventType", "WorkOrder");

  var response = eventBatch.TryAdd(data);
  if(response == true) // Payload size is less than 1 MB
  {
   await producerClient.SendAsync(eventBatch);
  }
  else // Payload size is greater than 1 MB
  {
      //Add to ZIP file to post through SFTP later.
  }

d. If the size of the payload exceeds 1 MB, the "TryAdd" method as shown in the above code snippet will give "FALSE" response. DMS/Dealer must store the failed payload in the JSON file format, ZIP all such JSON payload files together and transfer them via SFTP.

e. Please follow the file nomenclature as shown in the information box below for posting the files via SFTP.

File Nomenclature

WO_<DMSName><DealerName><primarySAPNumber><DataFromDate>to<DataToDate><File Transfer DateTime>.zip

Note: The <primarySAPNumber> field is optional if the DMS/Dealer is sending the data at the OG level by combining all locations data in a single file.

f. For a detailed breakdown of each data field and its attributes, please refer to the attributes sheet.

g. Please contact CNH support team for EventHub and SFTP connection details.
